Prometheus本身不支持告警功能,主要通过插件alertmanage来实现告警。AlertManager用于接收Prometheus发送的告警并对于告警进行一系列的处理后发送给指定的用户。文章源自小柒网-https://www.i7ti.cn/683.html
Prometheus触发一条告警的过程:文章源自小柒网-https://www.i7ti.cn/683.html
prometheus--->触发阈值--->超出持续时间--->alertmanager--->分组|抑制|静默--->媒体类型--->邮件|钉钉|微信等。文章源自小柒网-https://www.i7ti.cn/683.html
文章源自小柒网-https://www.i7ti.cn/683.html
实现WeChat告警-准备工作
1、访问企业微信官网(https://work.weixin.qq.com/),注册企业微信账号(不需要企业认证)。
2、登录成功后--->>应用管理--->>创建第三方应用,点击创建应用按钮 -> 填写应用信息:文章源自小柒网-https://www.i7ti.cn/683.html
文章源自小柒网-https://www.i7ti.cn/683.html
填写应用信息:文章源自小柒网-https://www.i7ti.cn/683.html
文章源自小柒网-https://www.i7ti.cn/683.html
部门ID:to_party 需要发送的组文章源自小柒网-https://www.i7ti.cn/683.html
文章源自小柒网-https://www.i7ti.cn/683.html
安装Alertmanager
1、下载Alertmanager文章源自小柒网-https://www.i7ti.cn/683.html
[root@localhost ~]# wget https://github.com/prometheus/alertmanager/releases/download/v0.20.0/alertmanager-0.20.0.linux-amd64.tar.gz文章源自小柒网-https://www.i7ti.cn/683.html
[root@localhost ~]# tar xf alertmanager-0.20.0.linux-amd64.tar.gz文章源自小柒网-https://www.i7ti.cn/683.html
[root@localhost ~]# mv alertmanager-0.20.0.linux-amd64 /usr/local/alertmanager文章源自小柒网-https://www.i7ti.cn/683.html
2、创建启动文件文章源自小柒网-https://www.i7ti.cn/683.html
[root@localhost ~]# vim /usr/lib/systemd/system/alertmanager.service文章源自小柒网-https://www.i7ti.cn/683.html
[Unit] Description=alertmanager Documentation=https://github.com/prometheus/alertmanager After=network.target [Service] Type=simple User=root ExecStart=/usr/local/alertmanager/alertmanager --config.file=/usr/local/alertmanager/alertmanager.yml Restart=on-failure [Install] WantedBy=multi-user.target
3、配置alertmanager.yml文件文章源自小柒网-https://www.i7ti.cn/683.html
Alertmanager 安装目录下默认有 alertmanager.yml 配置文件,可以创建新的配置文件,在启动时指定即可。文章源自小柒网-https://www.i7ti.cn/683.html
[root@localhost ~]# cd /usr/local/alertmanager文章源自小柒网-https://www.i7ti.cn/683.html
[root@localhost alertmanager]# vim alertmanager.yml文章源自小柒网-https://www.i7ti.cn/683.html
global: # 每2分钟检查一次是否恢复 resolve_timeout: 2m # 自定义通知模板 templates: - '/usr/local/prometheus/alertmanager/template/wechat.tmpl' # route用来设置报警的分发策略 route: # 采用哪个标签来作为分组依据 group_by: ['alertname'] # 组告警等待时间。也就是告警产生后等待10s,如果有同组告警一起发出 group_wait: 10s # 两组告警的间隔时间 group_interval: 10s # 重复告警的间隔时间,减少相同微信告警的发送频率 repeat_interval: 1h # 设置默认接收人 receiver: 'wechat' routes: # 可以指定哪些组接手哪些消息 - receiver: 'wechat' continue: true group_wait: 10s receivers: - name: 'wechat' wechat_configs: - corp_id: 'xxx' to_party: '2' agent_id: 'xxx' api_secret: 'xxx' send_resolved: true
参数说明:文章源自小柒网-https://www.i7ti.cn/683.html
corp_id: 企业微信账号唯一 ID, 可以在我的企业中查看。文章源自小柒网-https://www.i7ti.cn/683.html
to_party: 需要发送的组。文章源自小柒网-https://www.i7ti.cn/683.html
agent_id: 第三方企业应用的 ID,可以在自己创建的第三方企业应用详情页面查看。文章源自小柒网-https://www.i7ti.cn/683.html
api_secret: 第三方企业应用的密钥,可以在自己创建的第三方企业应用详情页面查看。文章源自小柒网-https://www.i7ti.cn/683.html
4、配置告警模板文章源自小柒网-https://www.i7ti.cn/683.html
[root@localhost alertmanager]# mkdir -p /usr/local/prometheus/alertmanager/template文章源自小柒网-https://www.i7ti.cn/683.html
[root@localhost alertmanager]# vim /usr/local/prometheus/alertmanager/template/wechat.tmpl文章源自小柒网-https://www.i7ti.cn/683.html
# 只告警,恢复后不发送消息文章源自小柒网-https://www.i7ti.cn/683.html
{{ define “wechat.default.message” }} {{ range .Alerts }} ========start========== 告警程序:prometheus_alert 告警级别:{{ .Labels.severity }} 告警类型:{{ .Labels.alertname }} 故障主机: {{ .Labels.instance }} 告警主题: {{ .Annotations.summary }} 告警详情: {{ .Annotations.description }} 触发时间: {{ .StartsAt.Format “2020-4-16 15:55:36” }} ========end========== {{ end }} {{ end }}
# 带恢复告警的模版 注:需要在alertmanager.yml的wechat_configs中加上配置send_resolved: true文章源自小柒网-https://www.i7ti.cn/683.html
{{ define "wechat.default.message" }} {{ range $i, $alert :=.Alerts }} ===alertmanager监控报警=== 告警状态:{{ .Status }} 告警级别:{{ $alert.Labels.severity }} 告警类型:{{ $alert.Labels.alertname }} 告警应用:{{ $alert.Annotations.summary }} 故障主机: {{ $alert.Labels.instance }} 告警主题: {{ $alert.Annotations.summary }} 触发阀值:{{ $alert.Annotations.value }} 告警详情: {{ $alert.Annotations.description }} 触发时间: {{ $alert.StartsAt.Format “2020-4-16 15:55:19” }} ===========end============ {{ end }} {{ end }}
5、配置告警规则文章源自小柒网-https://www.i7ti.cn/683.html
[root@localhost alertmanager]# mkdir -p /usr/local/prometheus/rules文章源自小柒网-https://www.i7ti.cn/683.html
[root@localhost alertmanager]# cd /usr/local/prometheus/rules文章源自小柒网-https://www.i7ti.cn/683.html
[root@localhost rules]# vim node.yml文章源自小柒网-https://www.i7ti.cn/683.html
groups: - name: Node_Down rules: - alert: Node实例已宕机 expr: up == 0 for: 10s labels: user: root severity: Warning annotations: summary: "Instance {{ $labels.instance }} Down" description: "{{ $labels.instance }} of job {{ $labels.job }} has been Down."
在Prometheus.yml中指定node.yml的路径文章源自小柒网-https://www.i7ti.cn/683.html
[root@localhost rules]# vim /usr/local/prometheus/prometheus.yml文章源自小柒网-https://www.i7ti.cn/683.html
global: scrape_interval: 15s # Set the scrape interval to every 15 seconds. Default is every 1 minute. evaluation_interval: 15s # Evaluate rules every 15 seconds. The default is every 1 minute. # scrape_timeout is set to the global default (10s). # Alertmanager configuration alerting: alertmanagers: - static_configs: - targets: ['localhost:9093'] # - localhost:9093 # Load rules once and periodically evaluate them according to the global 'evaluation_interval'. rule_files: - 'rules/*.yml' # - "first_rules.yml" # - "second_rules.yml" # A scrape configuration containing exactly one endpoint to scrape: # Here it's Prometheus itself. scrape_configs: # The job name is added as a label `job=<job_name>` to any timeseries scraped from this config. - job_name: 'prometheus' static_configs: - targets: ['localhost:9100']
6、重启Prometheus服务文章源自小柒网-https://www.i7ti.cn/683.html
[root@localhost rules]# systemctl restart prometheus文章源自小柒网-https://www.i7ti.cn/683.html
7、启动Alertmanager文章源自小柒网-https://www.i7ti.cn/683.html
[root@localhost rules]# systemctl daemon-reload文章源自小柒网-https://www.i7ti.cn/683.html
[root@localhost rules]# systemctl start alertmanager文章源自小柒网-https://www.i7ti.cn/683.html
8、验证效果文章源自小柒网-https://www.i7ti.cn/683.html
此时访问prometheus管理界面可以看到如下信息:文章源自小柒网-https://www.i7ti.cn/683.html
文章源自小柒网-https://www.i7ti.cn/683.html
9、然后停止 node_exporter 服务,然后再看效果。文章源自小柒网-https://www.i7ti.cn/683.html
[root@localhost rules]# systemctl stop node_exporter文章源自小柒网-https://www.i7ti.cn/683.html
prometheus界面的alert可以看到告警状态。文章源自小柒网-https://www.i7ti.cn/683.html
- 绿色表示正常。
- 红色状态为PENDING表示alerts还没有发送至Alertmanager,因为rules里面配置了for: 10s。
- 10秒后状态由PENDING变为FIRING,此时Prometheus才将告警发给alertmanager,在Alertmanager中可以看到有一个alert。
文章源自小柒网-https://www.i7ti.cn/683.html

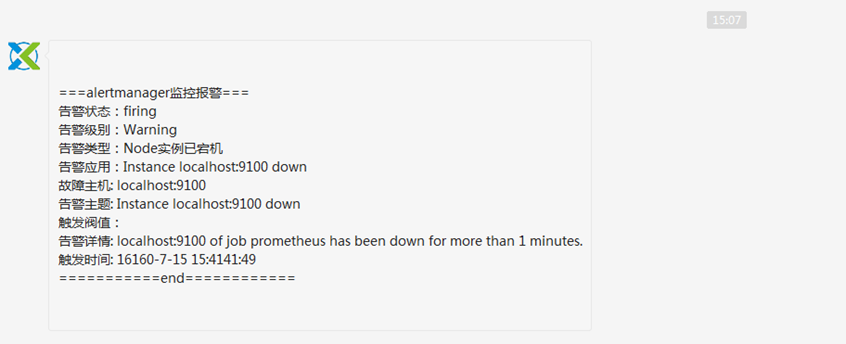

10、接着企业微信会收到告警信息文章源自小柒网-https://www.i7ti.cn/683.html
文章源自小柒网-https://www.i7ti.cn/683.html
11、再次启动node_export文章源自小柒网-https://www.i7ti.cn/683.html
[root@localhost ~]# systemctl start node_exporter文章源自小柒网-https://www.i7ti.cn/683.html

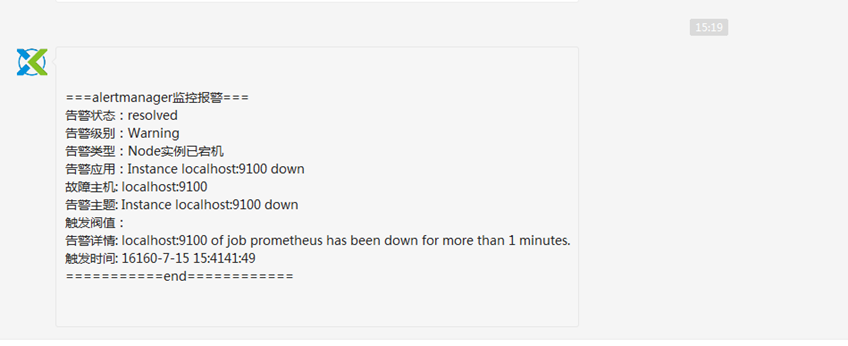

企业微信会收到恢复信息文章源自小柒网-https://www.i7ti.cn/683.html
文章源自小柒网-https://www.i7ti.cn/683.html
附:文章源自小柒网-https://www.i7ti.cn/683.html
CPU使用率告警规则:文章源自小柒网-https://www.i7ti.cn/683.html
groups: - name: CPU rules: - alert: CPU使用率过高 expr: (100 - (avg by (instance) (irate(node_cpu{mode="idle"}[5m])) * 100)) > 80 for: 1m labels: severity: Warning annotations: summary: "{{ $labels.instance }} CPU使用率过高" description: "{{ $labels.instance }}: CPU使用率超过80%,当前使用率({{ $value }})."
内存使用率告警规则:文章源自小柒网-https://www.i7ti.cn/683.html
groups: - name: Memory rules: - alert: 内存使用率过高 expr: (node_memory_MemTotal - (node_memory_MemFree+node_memory_Buffers+node_memory_Cached )) / node_memory_MemTotal * 100 > 80 for: 1m #告警持续时间,超过这个时间才会发送给alertmanager labels: severity: Warning annotations: summary: "{{ $labels.instance }} 内存使用率过高" description: "{{ $labels.instance }}:内存使用率超过80%,当前使用率({{ $value }})."文章源自小柒网-https://www.i7ti.cn/683.html
